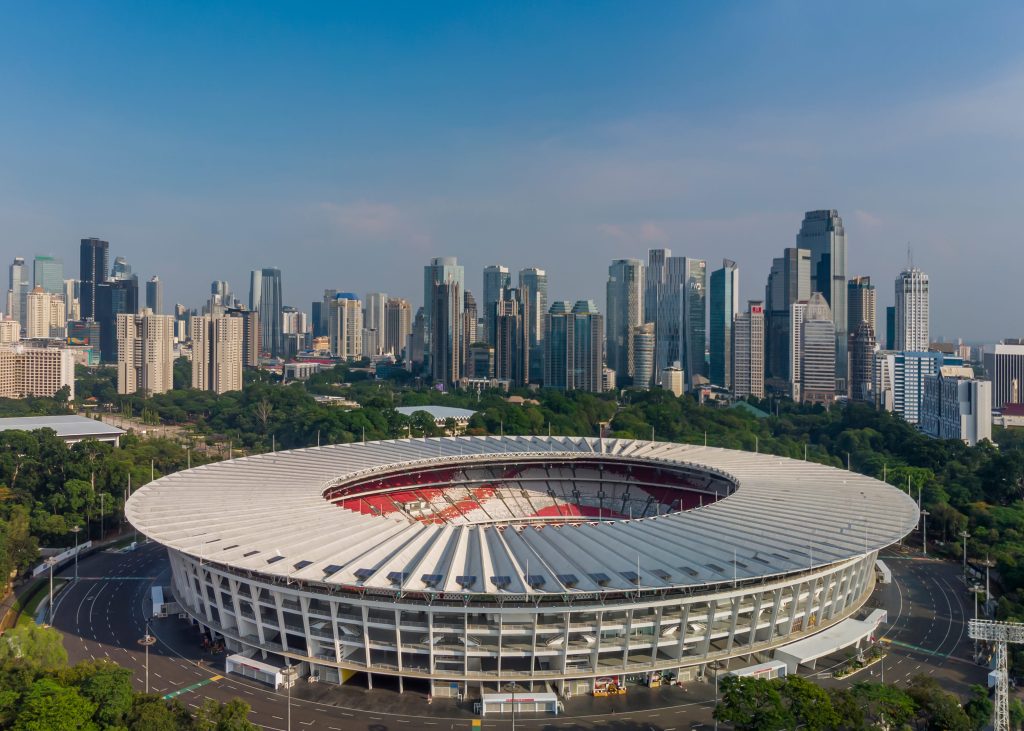

Stadiums & Parks
Crafting Engineering Excellence
Public spaces such as stadiums and parks require a blend of safety, aesthetics, and functionality. Products like roof hatch covers, tree gratings, heelproof gratings, and ornamental handrails enhance both safety and design appeal. Recess covers, access covers, and walkways ensure that maintenance and accessibility are handled without disrupting the visual landscape. Unique additions such as Sol-Tree solar trees, James carports, garden edging, cable trays, and bollards support green energy integration and public safety. Materials must be weather-resistant, tamper-proof, and safe for high foot traffic environments, making aluminium an ideal choice.
Crafting Engineering Excellence
Roof Hatch Covers
Material : Aluminium, HDG Steel, Stainless Steel
Design Code : BS EN 1474, EN 516
Loading Criteria : 100 kg
Roof hatch Access is used to provide access to flat covered inclined or RCC roofs as or where required. It’s like a door to the roof which enables the passage for people or goods from one place to another. Roof hatches are also used to provide sunlight, ventilation, to control moisture and temperature. Experience unmatched quality and versatility with our Aluminium Alloy Access Roof Hatch Covers. Crafted to perfection, our covers come in various sizes tailored to fit different roof types and meet individual client specifications. For added convenience, our roof hatch covers can be paired with custom-made fixed vertical ladders and stairs (optional).
- Aluminium Extruded Alloy: Compliant with AA 6063 T6 / AA 6082 T6 standards
- Design & Fabrication: Conformed to BS 9124: 2008 specifications
- Kerb Angles: Equipped with all-around angles for enhanced stability
- EPDM Gasket Seal: Prevents the ingress of dirt and moisture
- Gas Spring-Assisted Lift: With safety lock, facilitating a maximum opening of 90-105 degrees
- Automatic or Manual Lifting: Tailored to suit your preference
- Installed on the stadium roof to provide easy access for cleaning and maintenance activities.
Tree Grating
Material Grade : Aluminium Alloys, HDG Steel & Stainless Steel
Design Code : BS EN 4592 & FACTA Class
Loading Criteria : 1 kN to D400
Tree Gratings are meticulously designed metallic structures installed at sidewalk level around the base of trees. They safeguard the soil from pedestrian impact, allowing individuals to stroll closer to trees without disturbing the earth beneath. The slots in the grate ensure air, sunlight, and water reach the tree roots, fostering healthy growth. Additionally, these grates form a protective barrier, offering uncompacted soil and ample space for root expansion. Along ceremonial streets, they serve as decorative elements that harmonize with the street’s design, adding to its character.
- Preservation and Protection
- Effortless installation
- Prolongs tree longevity
- Customizable
- Aesthetic appeal
- Diverse designs
- Fixed around the base of trees planted in parks and near stadium areas to protect roots while allowing water percolation.
HeelProof Grating
Material : Aluminium Alloys, HDG Steel & Stainless Steel
Design Code : BS EN 4592
Loading Criteria : 2 kN to 10 kN
An innovative solution crafted specifically to ensure secure and effortless walking, especially for women wearing pencil-type heels. These gratings boast a finely meshed design, offering ample functionality and safety. Crafted from lightweight aluminum grids securely bound within an angled Kerb frame, these gratings are engineered to withstand a substantial load of 500kg per square meter
- Tailored Safety
- Corrosion-Resistant
- Lightweight Design
- Slip-Resistant
- Maintenance-Free
- Used as flooring platforms in areas requiring ventilation without compromising pedestrian safety, ensuring even those wearing heels can walk safely.
Ornamantal Handrail
Material : Al Alloy AA 6063, SS 304/316, Ms Galvanised
Design Code :
Loading Criteria :
Instrumental Handrails are essential safety components designed to provide reliable support and stability across staircases, ramps, and elevated pathways. Engineered with precision and care, these handrails are built using high-quality materials such as stainless steel, Aluminium, Wood, Mild Steel to ensure both strength and longevity with elegance in look.
Their primary purpose is to enhance safety and accessibility for all individuals — from the elderly and people with disabilities to anyone navigating potentially hazardous environments. Whether installed in residential buildings, hospitals, or industrial settings, instrumental handrails play a vital role in preventing slips, trips, falls and also give safety.
- Enhanced Safety & Stability
- Accessibility for All
- Versatile Material Options
- Easy Installation
- Durable & Low Maintenance
- Aesthetic Integration
- Regulatory Compliance
- Installed inside the stadium and along the park periphery to enhance safety and aesthetics.
Recess Covers
Material Grade : Aluminium & SS
Design Code : as per FACTA
Loading Criteria : B124 & D400
Recessed Manhole Covers. Recessed, means the cover is a set of frame and tray, with a recessed area to fill screed in and paving materials. It blends in with the surface and provides an aesthetically appealing finish.Explore our premium selection of Aluminum alloy and stainless recess covers, available in various sizes, meticulously crafted to meet the highest standards of durability and safety. Recess Cover is manufactured out of frame ( solid metal sheet) and tray with a recessed area having mesh to fill concrete , tiles or other paving materials. It also blends in with the adjacent surface and provides an aesthetically appealing finish.
- Unmatched Strength
- Compliance with Standards
- Corrosion Resistance
- Mounted on ground surfaces in stadiums and parks for functional and aesthetic covering of service points.
Access Covers
Material Grade : Aluminium Alloy AA6063 T6, AA6005 T6, AA6061 T6, AA6082 T6, SS304 & SS316.
Design Code : BS EN 4592, BS EN 1474
Loading Criteria : 1 kN to 10 kN per sqm
Access Covers are removable or hinge type solid plate placed on top of manhole with opening large enough for a person to pass through that is used as an access point for underground drainage system, chambers vault or sewage pipe etc.
- All-around Kerb Angles
- Safety Stay
- Aesthetic appeal
- Lightweight with High strength
- Made Customize Size
- Primarily installed around the STP plant near stadiums and parks to allow easy maintenance access.
Material : Aluminium Alloy AA6063 T6, AA6082 T6, HDG Steel, SS304 & SS316.
Design Code : BS EN 1474
Loading Criteria : Wind Speed 140 km/hr
In a space-conscious nation like India, we present the JAMES SOL TREE – an innovation crafted by West Coast Engineering Works. Our mission is simple: “MINIMUM SPACE MAXIMUM OUTPUT.” This remarkable product is designed to occupy negligible space while generating substantial solar energy. Covering merely 2 sqm of land area, the James Sol Tree not only produces solar energy but also enhances the aesthetic appeal of your garden and property.
- Energy efficient
- Aesthetic appeal
- Sustainable
- Environmentally friendly
- Minimal land consumption
- Low maintenance
- Placed in parks where sufficient sunlight is available to generate renewable electricity.
Material : Aluminium Alloy AA6063 T6, AA6082 T6, HDG Steel, SS304 & SS316.
Design Code : BS EN 1474
Loading Criteria : Wind Speed 140 km/hr
James Carport presents a cutting-edge solution with solar carports, uniquely designed to seamlessly integrate solar panels within the structure. Unlike traditional setups, these solar carports don’t rely on specific surfaces or roofs, setting them apart in the market. Beyond sheltering your vehicle, the panels serve a dual-purpose by generating clean energy, making them an eco-friendly investment.
- Cost-Efficient
- Low Maintenance
- Environmental Impact
- Space Optimization
- Adaptability
- Aesthetic Appeal
- Installed outside stadiums and parks to provide shaded vehicle parking areas.
Type 1 Landscape
Material Grade : Aluminium Alloy AA6063 T6, AA6005 T6, AA6061 T6, AA6082 T6, HDG Steel, SS316 & SS304.
Design Code : BS EN 8118, BS EN 1474
Step into the future of landscaping with Type 1 Landscape, showcasing an innovative L-profile aluminium edge restraint in both Flexible and Rigid variants. Purposefully crafted with the needs of landscape architects and installers in mind, this West Coast marvel seamlessly combines simplicity, durability, and style for your upcoming edging project.
- Robust Construction
- Lightweight Advantage
- Cost-Effective Installation
- User-Friendly Design
- Enhanced Strength
- Safety at the Core
- Developed between parks and roads to serve as a natural barrier while enhancing aesthetics.
Type 2 Landscaping
Aluminium Alloy AA6063 T6, AA6005 T6, AA6061 T6, AA6082 T6, HDG Steel, SS316 & SS304.
Design Code : BS EN 8118, BS EN 1474
Introducing our Type 2 Landscaping, meticulously crafted in 3000mm lengths. This discreet yet robust solution effortlessly defines perimeters for sidewalks, parking lots, courts, and hardstandings. Our flexible premium aluminum edgeline, made from high-quality aluminum alloy, is a modern marvel capable of withstanding mechanical compaction while offering the versatility to create both straight lines and elegant curves. Type 2 Landscaping restraints deliver a profitable, economical, and aesthetically pleasing solution for any surfaced area.
- Premium Quality
- Flexibility Redefined
- Effortless Installation
- Seamless Surface
- Lightweight and Robust
- Weather-Resistant
- Developed between parks and roads to serve as a natural barrier while enhancing aesthetics.
Cable Trays
Material Grade : Aluminium Alloy, Stainless Steel & HDG Steel
Introducing our innovative Cable Trays – designed for efficiency, simplicity, and affordability. Specializing in products that excel in both form and function, our cable tray systems redefine cable management, offering seamless support and protection for power and signal cables.
- Corrosion Resistance
- Strength-to-Weight Excellence
- Lightweight Advantage
- Efficient Heat Dissipation
- Instant Cable Visibility
- Flexible Cable Management
- Installed inside stadiums for safe and organized routing of electrical and communication cables.
SS Bollards
Material Grade : SS 304 / SS 316
Design Code : ISO 13795
Loading Criteria : B124 & D400
SS (Stainless Steel) Bollards serve as robust physical barriers to restrict unauthorized vehicle access in sensitive or high-traffic zones. Widely utilized in locations such as airports, shopping malls, commercial complexes, and entertainment centers, these Bollards blend safety with architectural aesthetics. They are typically installed at specific regular intervals on a concrete foundation with a base plate. It can also be used to control the speed of traffic by narrowing the lanes.
- It looks elegant in the installed area.
- Available in both highly polished and matte finish for aesthetic flexibility.
- Installed at standard 2-meter intervals for consistent security coverage.
- Durable construction ensures long-lasting performance in outdoor and high-traffic environments.
- Prevent unauthorized vehicle entry into restricted areas.
- Can be designed with a flat or inclined top surface (up to 30 degrees).
- Straight-top bollards allow temporary seating; inclined designs deter sitting.
- Placed outside stadiums and along park pathways to restrict unauthorized vehicle entry and improve pedestrian safety.
Industrial Handrail
Material Grade : Aluminium Alloy AA6063 T6, AA6005 T6, AA6061 T6, AA6082 T6, HDG Steel, SS304 & SS316
Design Code : BS EN 1474, EN 516, OSHA 1910
Loading Criteria : 900 N
Introducing Industrial Handrail by West Coast – the perfect companion to our renowned ALUGRATE Aluminium Alloy Walkways, designed specifically for industrial use. Swiftly assembled with Stainless Steel fasteners, Industrial Handrail ensures a hassle-free, weld-less installation that conforms to International Standards, saving both time and cost.
- Effortless Assembly
- Lightweight Strength
- Customizable Design
- Versatile Mounting Options
- Corrosion Protection
- Aesthetic Appeal
- Installed within stadiums for spectator safety and crowd management.
